SOLAR STREET LIGHTS

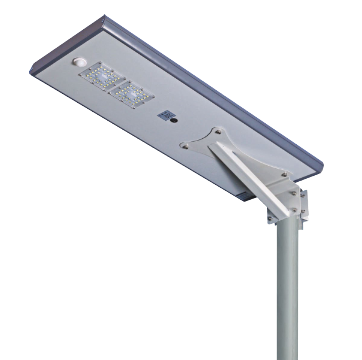

INTEGRATED SOLAR LIGHT

High performance LED Streetlight, Housing made of die-cast aluminum, with street optic LENS for uniform light distribution. Rated IP66

Explore Products

Aluminiumum Body

All the components are protected with IP65 rating.


PIR Motion Sensor

Automatic dimming and brightness of light within the range of12 m.


LiFePO4 Battery


Expected life>5 years. In-built BMS for battery safety.Maintenance free Operating temperature of  (LiFeP04) -10°to +55°

Mono Crystaline Solar Module

Higher efficiency Mono crystalline solar PV Module is designed with positive power tolerance with efficiency > 17% for faster charging

MPPT Solar Charge Controller

High efficiency >93 % to charge battery faster. Reverse polarity protection for battery & Solar panel. Overcharge & deep discharge protection for battery.  Over Voltage & Over Current protection from Solar PV Module.

  LED Light



High efficiency long life with customized lens for proper light distribution.


PRODUCT DETAILS

State-of-the-art lighting solutions with best-in-class features.

Contemporary Design

Compact and aesthetic design of outdoor luminaires blends well with the urban architecture and landscapes making the outdoors even more lively.

High Efficiency

Best-in-class and long life LEDs with good LED driver results in up to 65% energy savings.



Long Life


Better thermal management results in sturdy performance of the luminaire that gives a maintenance free and long service life.

Rugged Construction

Aluminum die-cast housing with IP65/IP66 construction enhances durability and reliability.


    • Integrated Solar panel, LED light, PIR motion sensor, Li-ion/LifeP04 and high efficiency solar charge controller
    • PIR Sensor adjusts LED brightness on sensing motion (12m range)
    • LEDs dim to 1/3 intensity after 1 min. of detecting no motion
  • Automatic dusk to dawn operation & Solar panel dirty indication
  • Micro controller based design enables intelligent and efficient working
  • Lithium-ion/LifeP04 battery technology provides longer product life and is completely maintenance free
  • GREEN & RED LEDs for indicating battery charging/fault


  • In built integrated electronic LED driver

MODEL

WATT

BATTERY

PANEL

 BACK UP TIME

GREENRE-AIO-12W

12W

6Ah

25W

 12-14 HRS

GREENRE-AIO-12W

12W

12Ah

50W

 16-18 HRS

GREENRE-AIO-18W

18W

12Ah

50W

 12-14 HRS

GREENRE-AIO-18W

18W

18Ah

60W

 16-18 HRS

GREENRE-AIO-24W

24W

18Ah

60W

 12-14 HRS

GREENRE-AIO-24W

24W

24Ah

75W

 16-18 HRS

GREENRE-AIO-30W

30W

24Ah

75W

 12-14 HRS

GREENRE-AIO-30W

30W

30Ah

75W

 16-18 HRS

  • Suitable for external pole dia. up to 42mm (24W, 30W, 36W)
  • Suitable for external pole dia. up to 55mm (100W,120W,150W,200W)
      • Suitable for external pole dia. up to 47mm (50W,60W,72W)
      • 3 Way 10 Amp connector provided for quick connections with cable gland in place with extended wire 150-200 mm out of luminaire
